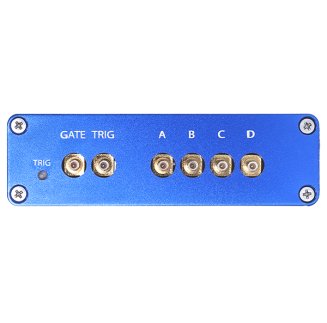

The T660 is a small, enclosed digital delay/pulse generator which is intended for use in embedded OEM applications. Given an internal or external trigger, it outputs four precisely timed pulses. It is a drop-in, backward compatible replacement for the T560 and T564 digital delay and pulse generators.

Standard features include:

• Four TTL-level delay outputs, individually programmable for delay and pulse width
• 10 picosecond delay and width resolution, 60 second range
• 21 nanosecond ± 400 picosecond insertion delay, 16 MHz max trigger rate
• <35 picoseconds typical jitter
• Internal 10 MHz crystal oscillator time base with external lock capability
• 0-16 MHz DDS synthesizer for internal trigger rates
• Programmable-level trigger input with divide and burst features and trigger enable GATE input
• RS-232 serial and 10/100 Mbps Ethernet interfaces
• Extruded enclosure with removable mounting flange
• Output impedance switch allowing for 50 Ω source termination or low impedance
• Trains/Frames advanced option (T660-2) includes timing lists and multiple pulses per trigger
• Firmware upgradable from any browser
• 12V power supply furnished with purchase

View this product at www.highlandtechnology.com/product/t660
