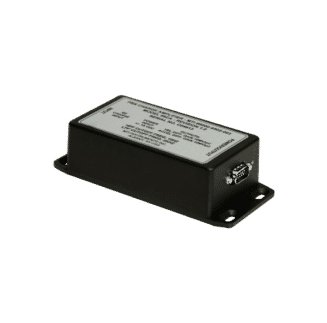

Single Channel Rugged Charge Amplifier for Test Cells
Need a moment?
Save this service to your Saved Items and return to it later.
Each 55CA Charge Amplifier provides one (1) channel of charge amplification, and provides a buffered acceleration output signal as well as an integrated (velocity) signal output. Both single ended and differential outputs are provided.
Features:
- Mini DB-15 connector (pins)
- Input Impedance: < 1kΩ@ 1kHz
- Capacitance Load: 100,000pF maximum
- Linear Output Voltage: 20Vpk-pk
- DC Output Offset: <10mV
- Output Current: 10mA maximum
View this product at mtiinstruments.com/products/signal-generator/signal-source
